XAUJ TSEEM CEEB B 1505 A (RIAM PHEEJ LWJ CW) Qhov Ntsuas / Kab Ke Nkhaus (hu rau muaj)

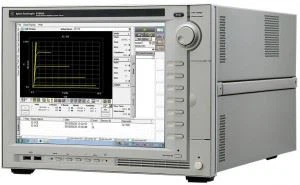

Lub Keysight B 1505 Ib (Agilent) Lub Cuab Yeej Hluav Taws Xob Khoom Siv Hluav Taws Xob / Kauj Ruam muaj tsuas yog lub thawv kev daws teeb meem niaj hnub no nrog lub peev xwm ntawm lub zog loj siv los ntawm theem sub-picoamp txog li 3000 volts thiab { {3}} amps. Lub peev xwm no suav nrog kev ntsuam xyuas rau cov khoom siv hluav taws xob tshiab siv cov khoom siv dav dav xws li silicon carbide (SiC) lossis gallium nitride (GaN). Lub Keysight B 1505 A (Agilent) muaj cov qauv sib txawv uas txhawb nqa qhov siab (tam sim no) (HCSMU) thiab high-voltage (HVSMU). B 1505 A kuj tseem txhawb nqa lub hwj chim siab SMU (txog 1 A / 200 V) thiab ntau qhov ntsuas muaj peev xwm ntsuas (txog 5 MHz) Cov. Nws kaum-qhov kev tsim kho qauv ua rau koj kho qhov B 1505 Txoj hauv kev uas koj xav tau.
Qhov Agilent B 1505 Kev Txheeb Xyuas Kev Tshawb Fawb / Nkhaus Nkhaus Ib Cheeb Tsam muaj cai rau cov neeg siv txheeb xyuas cov yam ntxwv ntawm cov khoom thiab nrhiav cov cuab yeej ua txhaum nrog qhov yooj yim yooj yim ntawm kev nkhaus. Cia li nyiam ntawm txoj kab nkhaus, B 1505 Ib qho kev txhawb nqa kev sib hloov pob qhov rooj tswj ntawm kev ywj pheej cheb sib txawv rau kev nkag siab thiab lub sijhawm ntsuas ntawm cov tsis xws li qhov ntsuas hluav taws xob. Qhov ntsuas teeb tsa cov ntaub ntawv thiab cov ntaub ntawv tuaj yeem cia rau hauv B 1505 A' s built-in hard disk drive thiab hloov mus rau USB lub cim xeeb txuas ntxiv nrog rau lwm cov chaw cia khoom siv. Nws tseem yooj yim los sau cov ntaub ntawv ntsuas kev ntsuas thiab coj thiab muab luam tawm rau hauv cov ntawv ceeb toom thaum cov txiaj ntsig tshuaj ntsuam tau raug muab los ntsuas.
Kev tshuaj xyuas cov khoom siv sib tw yog qhov tseem ceeb heev, ob qho tib si los ua kom muaj kev nyab xeeb (vim tias lub siab hloov thiab cov khoom siv tam sim no) thiab txhawb nqa ntau yam ntawm cov khoom siv fais fab pob lub hom. Ib qho kev txwv dhau los ntawm cov kev sib tw nkhaus yog qee lub zog siv hluav taws xob tsis tuaj yeem raug ntsuas vim lawv qhov loj me, lossis nws yog qhov tsim nyog los txiav txim rau lub pob hluav taws xob txhawm rau ntsuas cov cuab yeej. Txawm li cas los xij, B 1505 Ib qho' s kuaj qhov khoom tuaj yeem lees txais ntau yam khoom siv, xws li lub hwj chim MOSFETs, diodes thiab IGBTs, tsis hais lawv qhov loj los yog cov duab ntawm cov loj loj cov khoom siv nrog customizable fixture modules. Ntxiv rau, qhov kev xeem sib tw' s built-in interlock mechanism xyuas kom cov hluav taws xob hluav taws xob siab thiab dej ntws tuaj yeem siv rau cov khoom siv ntsuas kev nyab xeeb.
Cov cuab yeej hluav taws xob, suav nrog lub zog tswj hluav taws xob ICs (PMIC) thiab lub hwj chim MOSFETs thiab lub cev muaj zog tswj ICs siv hauv tsheb, yog kev loj hlob ntawm cov khoom siv uas yuav tsum muaj ob qho kev ntsuas siab thiab siab. Txhawm rau kom ua tiav cov qauv tshiab rau cov pa roj carbon tsawg thiab txhim kho kev siv hluav taws xob ntau, cov khoom siv hluav taws xob yuav tsum ua haujlwm tau zoo dua txawm tias lawv txuas ntxiv rau kev hloov pauv, me dua thiab nrawm dua. Cov cuab yeej tshiab siv cov khoom siv dav hauv qhov sib txawv xws li silicon carbide (SiC) lossis gallium nitride (GaN) tau kawm dav dav thiaj li ua tiav cov txiaj ntsig siab. Txhawm rau kom muaj kev soj ntsuam ceev faj thiab meej kom tau raws li kev ua tau zoo thiab kev nyab xeeb, cov kev tshawb fawb no yuav tsum muaj lub peev xwm ntsuas hluav taws xob ntau dua li ntawm 1, 000V. Ib qho ntxiv, rau cov kev tsim hluav taws xob-cov khoom siv hluav taws xob, kev sim ntawm kev siv roj ntsha ua ib qho tseem ceeb rau txo qis kev loj hlob tig rov qab.
Nta thiab Cov Lus Qhia ntawm Keysight B 1505 A (Agilent) suav nrog:
● PC-baed ntsuas nrog Windows®XP Professional OS● Nkhaus hom kab sib tw nrog pob qhov rooj cheb muaj nuj nqi
● Kaum tus qauv txuas rau HPSMU, HVSMU, HCSMU thiab MFCMU modules
Data Offline cov ntaub ntawv txheeb xyuas thiab thov kuaj kev txhim kho ntawm Desktop EasyEXPERT software
Kev Ntsuas Muaj Peev Xwm:
SM High-power SMU tuaj yeem ntsuas los ntawm 10 fA rau 1 A thiab los ntawm 2 µV rau 200 V
SM SMU siab-tam sim no tuaj yeem ntsuas los ntawm 10 pA rau 20 A thiab los ntawm 200 nV rau 40 V
SM High-voltage SMU tuaj yeem ua sub-picoamp xau ntsuas ntawm 3000 V
● Ntau zaus (1 kHz rau 5 MHz) lub ntsuas qhov ntsuas tau muaj peev xwm ntsuas tau qhov nruab nrab ntawm qhov ntsuas txog ntawm 3000 V dc bias
Kev Muaj Peev Xwm:
SM High-voltage SMU tuaj yeem muab khoom 1500 V ntawm 8 mA lossis { 3000 V ntawm 4 mA (Pulsed lossis DC); mem tes dav ntawm 500 µs rau 2 s
SM High-tam sim no SMU tuaj yeem muab khoom 20 A ntawm 20 V (Pulsed) thiab 1 A ntawm 40 V (DC); mem tes dav ntawm 50 µs rau 1 ms
Qhia Txog Kev Xaiv Tus Qauv
Module | Yuav tsum tau muaj Slots | Cov ntsiab lus Tshwj Xeeb |
B 1510 A HPSMU | 2 | Txog 200 V, 1 Ib lub zog. 10 fA daws tam sim no |
B 1512 A HCSMU | 2 | 20 A / 20 V (Raug Tsoo); 1 A / 40 V (DC) |
B 1513 A HVSMU | 2 | 1500 V / 8 mA; 3000 V / 4 mA; (Raug tshem tawm& DC) |
B 1520 A MFCMU | 1 | 1 kHz txog 5 MHz, nce txog 3000 V DC bias siv kev tsis ncaj |
Lwm Tus Kab Nkhaus
● Tek 370 A
Tek 371 A (Siab Zog)
Tek 370 B
