TSEEM CEEB E 5250 A

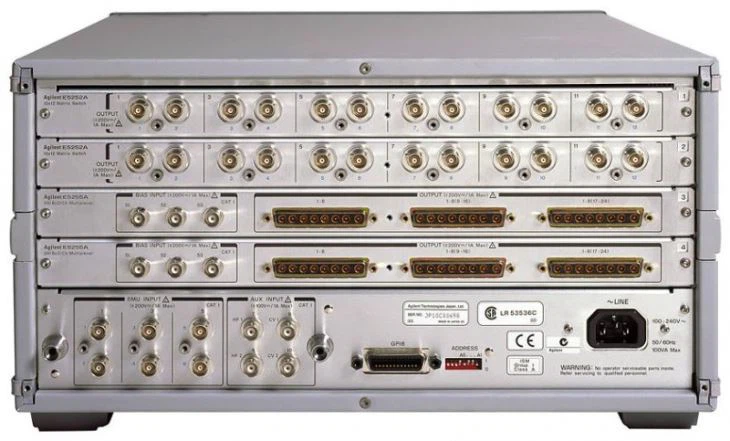

Lub Keysight E 5250 Lub Qes qis tsis txaus Hloov kho Mainframe nthuav tawm tib qho chaw ntsuas chaw nres tsheb, xws li Keysight B 1500 A, 4155 C, lossis 4156 C, rau qhov ntsuas ntsuas ib leeg kaw lus. Plug-in modules tuaj yeem muab kho ib qho los ntawm qhov nruab nrab ntawm cov ntsiab lus sib txawv rau cov kev ntsuas dav dav lossis los yog raws li multiplexer rau kev ntsuas kev ntseeg tau ntev.
Thaum tau teeb tsa raws li 24 (8 x 3) Channel Multiplexer, Agilent E 5250 A yog qhov zoo tshaj rau kev ntsuas mus sij hawm ntev kev cia siab nrog nws 3 {{ 1}} 4 channel muaj peev xwm thiab cov yam ntxwv siab ntxiv feem ntau pom ntawm cov khoom loj loj, tus nqi kim dua. Qhov no tso cai cov khoom siv hluav taws xob pheej yig siv rau kev ntxhov siab tsis tu ncua.
Qhov ntau ntawm cov channel thiab cov tsis tshua muaj siab ntxhov siab tso cai ntsuas kev ntsuas tau ntau pua ntawm cov khoom siv hauv ib txhij, txuag tus nqi thiab lub sijhawm thiab ua tiav cov txiaj ntsig zoo, ua tau zoo ib yam.
Cov haujlwm tseem ceeb ntawm Keysight E 5250 Lub Qhov Tsis Txaus Ntseeg Kev Ntaus qis yog:
● Hloov DC tam sim no, DC voltage, lub zog thiab cov mem tes nrog DC seev thiab LCR metres
Tswj kev hloov pauv ntawm builtin GPIB
● Ua qhov kev ntsuas tus kheej siv Option 301 relay function test adapter
Cov yam ntxwv dav dav ntawm E 5250 A
Supported Muaj ob daim npav matrix hom uas txaus siab: E 5252 Ib daim npav loj thiab E 5255 Ib daim npav ntau
● E 5252 Ib daim npav ua phaib siab txhawb Kelvin lossis tus nqi sib tw tsis yog Kelvin hloov pob taws ua haujlwm
● E 5255 Ib daim yuaj tsheb loj uas muaj ntau qhov kev pab txhawb kom tau txais kev tso siab ntev mus sij hawm ntev
● Keysight EasyEXPERT software tuaj yeem tswj thiab kho cov tshuab hloov chaw siv cov kev xeem
Kev ntsuas kev muaj peev xwm
● 20 femtoamp ntsuas kev ntsuas los ntawm tus tes hloov siv 4156 C, B 1500 A, lossis E 5270 B HRSMU
Time Lub sijhawm hloov pauv tam sim no (mus rau< 450="" fa)="" tsawg="" dua="" ntawm="" 3.="" 5="" seconds="" (10="" v="" kauj="" ruam)="" (cov="" lus="" qhia="">
● 10 MHz bandwidth (- 3dB) siv E 5252 Ib daim npav (Cov Ntaub Ntawv Ntxiv Ntxiv)
● Channel cais tawm ntawm 10 cov vaj ntxwv rau cov kab tam sim no (tsis tseem ceeb) siv E 5252 Ib daim npav
Cov Cuab Yeej Siv (siv E 5252 Ib daim npav ua lej)
● 6 tsawg-tam sim no (triaxial) thiab 4 cov ntsiab lus dav dav (coaxial) cov tswv yim
Design Modular design txhawb cov x 12, x 24, x 36, thiab x 48 cov ntaub ntawv tso tawm triaxial
Triaxial inputs 1 rau 4 muaj nplooj siab sab hauv paths
● Lub tswv yim sib xyaw 5 rau {{1}} thiab cov 4 coaxial inputs tau ntau yam (3: 1) thiab sib faib 2 sab hauv txoj kev
Cov Cuab Yeej Siv (siv E 5255 Ib cov ntawv ntau dua qub)
{{ 6 tawm tsawg-tam sim no (tsis tseem ceeb) kev siv; 3 DC-bias (coaxial) inputs ib daim npav
Design Modular design txhawb cov x 24, x 48, x 72, thiab x 96 cov ntaub ntawv tso tawm triaxial
● Ua laib txog 4 E 5250 Ib lub ntsiab lus sib xyaw ua ke los pab txhawb txog 384 tso zis raws
Nta:
10 x 12 matrix hloov rau kev ntsuas kev ntsuas qhov qub
Qu Kev ntsuas qhov ntsuas ntawm ntau cov twj ntawm ib qho qauv ntsuas
● Kaum lub tswv yim thiab 48 cov khoom tso tawm muab qhov hloov tau yooj yim thiab raug
● Ob qhov kev tawm qes qis thiab 4 txheej txheem ntxig rau kev ntsuas IV
Ob txoj hauv kev CV nrog kev them nyiaj kom raug
● Ob lub cev pabcuam rau kev hloov kho, sib luag thiab lwm yam kev ntsuas
24 (8 x 3) channel multiplexer rau kev soj ntsuam kev ntseeg tau
● 384-channel muaj peev xwm ua kom muaj kev sib tw sib luag
● Pheej yig lub zog siv rau kev ntxhov siab tsis tu ncua
● Kev tiv thaiv tawm tsam fais fab loj rau cov txiaj ntsig raug
Cables Cov xov hluav taws xob muaj qhov kub zoo rau kev siv hauv ib chav
