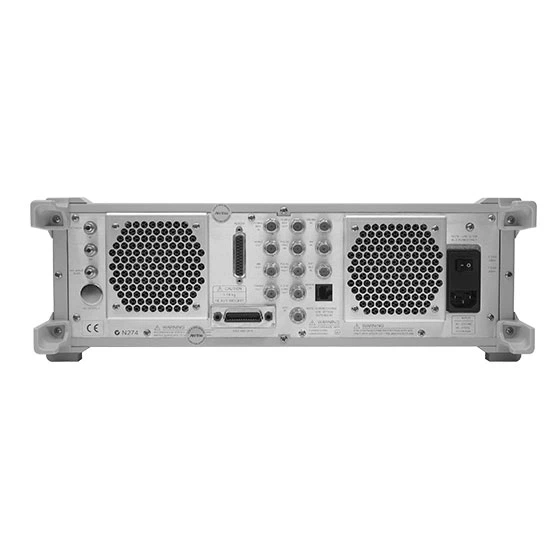

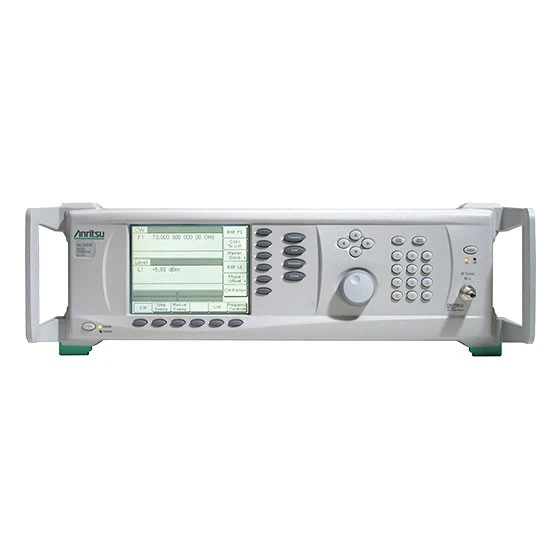

Lub Anritsu MG3696A yog qhov ua haujlwm siab dav dav Cov Xov Xwm Ua Haujlwm uas suav nrog RF thiab microwave zaus ntawm 2 txog 65 GHz (lossis xaiv ntawm 0.01 GHz) hauv tib lub ntsuas. Rau cov millimeter yoj ntau zaus, MG3696A qhov kev tiv thaiv tuaj yeem txuas mus txog 110 GHz lossis tshaj ntawd, nrog cov sab nraud ntawm sab nraud. MG3696A teeb liab teeb hluav taws xob yog qhov tsis tshua tuaj yeem tsim kho, thiab tuaj yeem ua kom tau raws li koj qhov kev xav tau tiag tiag, txo koj qhov kev pib nqis peev. MG3696A kuj tseem yoog tau nrog ib daim ntawv teev kev hloov kho tshiab rau koj cov kev xav tau yav tom ntej.
MG3696A muab tag nrho cov muaj peev xwm ntawm lub tshuab hluav taws xob microwave siab tshaj plaws. Nws siv lub thev naus laus zis ua ntu zus suab nrov ntawm nws cov neeg ua ntej.
Nws muab tso zis zoo zog nrog qhov qis tshaj hluav taws xob cov ntsiab lus purity. Ntau zaus tuaj yeem raug sib tsoo digitally lossis los ntawm ib qho sib piv ntawm cov khauj khaum. Ib qhov zaus CW yuav yog ntu tshem tawm los yog muab xauv lub voj sab nraud sab nraud. Amplitude, Frequency, Phase, thiab Pulse cov kev cai muaj nyob rau sab nraud lossis sab hauv-tsav. Pob software sab nraud yooj yim siv cov kev hloov kho no ua ke, thiab tso cai rau kev nqis qis ntawm cov neeg siv txhais cov qauv kev hloov kho. Rau IQ tes taws los piav, qhov kev xaiv IF kev tso cai ua kom yooj yim hloov pauv ntawm ib qho txawv ntawm IQ-modulated RF teeb liab.
Nta ntawm:
E ntau zaus: 2 txog 65 GHz (lossis xaiv 0.01 GHz txog 65 GHz)
● Kev daws teeb meem - 0.01 Hz
Phase Offset - 0.1 dB qib
● RF Kev Txwv Tsis Pub Muaj Sij Hawm Txuas Ntxiv, qis rau 0.1 Hz
oBest tov rau dual RF thiab Microwave kev siv
oAn yeem nqes-hloov khoom siv npog 10 MHz txog 2 GHz
o On yeem DDS muab kev pab ntxiv rau 0.1 Hz
Pha Kev Ua Haujlwm Zoo Tshaj Plaws Suab nrov raws li tus qauv
oA yeem yeem ua rau qib qis tsis tshua muaj suab nrov> 2 GHz
o Ntxiv rau qhov yeem digital down-hloov rau:
oLowest Theem Tsis muaj suab RF los ntawm 10 MHz txog 2.2 GHz
o< 130="" dbc="" hz="" @="" 1="" ghz,="" 10="" khz="">
Out Lub Hwj Chim Siab Tshaj Tawm
tshuav / xaiv. 4: +12 dBm txuj (@ ≤2GHz)
tshuav / xaiv. 5: +12 dBm txuj (@ ≤2 GHz)
o+10 dBm txuj (@ ≥2 txog ≤20 GHz)
o+3 dBm txuj (@> 20 txog ≤65 GHz)
Rang Kev Muag Khoom Siv Ntau Tshaj
o110 dB Kev xaiv xaiv Attenuator Xaiv
o120 dB Hluav Taws Xob Attenuator Xaiv
● AM / FM / ØM / PM, Sab Nraud lossis Sab Hauv
o100 ns leveled mem tes dav> 2 GHz, 1 µs
● Yog Tias Xaiv-Kev Hloov Pauv Hloov
oObtain IQ-modulation microwave cov teeb liab los ntawm kev hloov pauv ntawm IFulated cov teeb meem no
● Digital lossis Analog cheb
