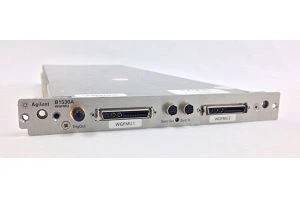

Lub Keysight B 1530 Ib Tug Hluav Taws Xob Tawm Tsam Hluav Taws Xob / Ceev Me Ntsuas Chav Nyob Sab Qauv (WGFMU) zoo meej rau Ultra-vas nthiv IV, pulsed IV thiab hloov mus rau kev ntsuas IV, uas tau dhau los ua ib qho kev xav tau ua rau R& D ntawm tom ntej tiam semiconductor, ntaus ntawv thiab cov ntaub ntawv. Lub Keysight B 1530 Ib Tug Hluav Taws Xob Waveform / Chav Ntsuas Ntsuas sai (WGFMU), siv nrog Keysight B 1500 Ib Tus Semiconductor Parameter Analyzer, yog qhov ntsuas tshwj xeeb tshaj plaws rau cov sijhawm ntsuas ntsuas. Lawv tau feem ntau ua los ntawm kev sib xyaw ntawm cov mem tes ua hluav taws xob thiab oscilloscopes, tab sis cov load kab tshwm sim, uas yog yuam kev los ntawm qhov voltage poob ntawm cov qias tawm, yog qhov teeb meem rau kev ntsuas qhov tseeb. Lub B 1530 A WGFMU sib sau ua ke tsis sib xws waveform tiam thiab tib lub tshuab ntsuas hluav taws xob muaj peev xwm, thiab Keysight' s tshwj xeeb dynamic SMU thev naus laus zis ntsuas tau raug thiab qhov ntsuas rhiab ntau dua li lub tshuab hluav taws xob raws kev daws teeb meem tsis muaj load kab nyhuv. Qhov no yog qhov muaj zog heev thiab txiaj ntsig kev daws teeb meem los ua cov kev sib tw ua tiav ultra-ceev IV, pulsed IV thiab kev hloov pauv IV siv xws li ultra-ceev NBTI thiab RTN ntsuas, thiab lwm yam.
Qhov rhiab heev ntawm ultra-ceev IV, pulsed IV thiab kev ntsuas IV kev hloov pauv yog lwm qhov kev sib tw. Flow tam sim no tuaj yeem muaj qhov sib txawv ntawm cov mem tes hauv qab thiab lub plawv dhia, thiab qee cov khoom siv qhia pom kev cuam tshuam hloov pauv los ntawm cov ntawv thov nthwv dej. Keysight B 1530 A muaj rab peev xwm los qhia qhov ntsuas ntau ntawm txhua qhov taw tes, thiab qhov ntau tau hloov pauv qhov hloov pauv tau zoo rau qhov kev tawm suab tsim. Raws li, qhov zoo tshaj plaws thiab kev daws teeb meem tuaj yeem siv tau rau qhov ntsuas qhov tseeb nrog qhov Keysight B 1530 A.
Cov peev txheej siab ntsuas ntawm B 1530 WGFMU pab kom cov kev ntsuas uas tau nyuaj los ntawm cov pa ntsuas ntsuas. B 1530 A WGFMU ua rau kom cov xeeb ceem tsawg dua orders kev txiav txim vim nws qhov ntsuas ceev thiab siab rhiab heev. Piv txwv li, nws tuaj yeem siv rau kev ua tau zoo tshaj plaws xws li ntsuas nrawm NBTI / PBTI thiab RTN kev ntsuas uas yog qhov kev sib tw tseem ceeb rau kev ntseeg siab tshaj qhov siab (semiconductor). Keysight B 1500 A muab cov software npaj-rau-siv kom tau txais cov ntawv thov sai.
Cov ntsiab lus tseem ceeb thiab cov yam ntxwv ntawm Keysight B 1530 WGFMU suav nrog:
Tsuas muaj tseeb mem tes / hloov ntsuas kev ntsuas uas tsis muaj cov kab thauj khoom
Arbitrary waveform tiam thiab high-speed IV ntsuas muaj peev xwm sib xyaw ua ke
Tsis muaj cov kab thauj khoom siv tau raug kho lub txiaj ntsig kev ntsuas IV los ntawm Keysight cim dynamic SMU thev naus laus zis
● Kev daws rau ultra-ceev IV (tam sim no-voltage), pulsed IV thiab hloov IV kev ntsuas xws li NBTI / PBTI, RTN (Random Telegraph teeb liab nrov), thiab lwm yam
Kev ntsuas kev muaj peev xwm
Output DC cov khoom tawm thiab tsim hluav taws xob tsis ntev los nrog kev tsim tawm 10 ns qhov kev daws teeb meem (10 V cov ntsiab lus-rau-ncov cov zis)
Kev ntsuas hluav taws xob siab / ntsuas tam sim no (200 MSa / s, 5 ns qauv ntsuas)
● Ntau yam tam sim no muaj los ntawm qhov muaj peev xwm hloov tau yam ntxwv hauv kev ua haujlwm yam ntxwv yoj suab
Output Tsim cov channel tso tawm
