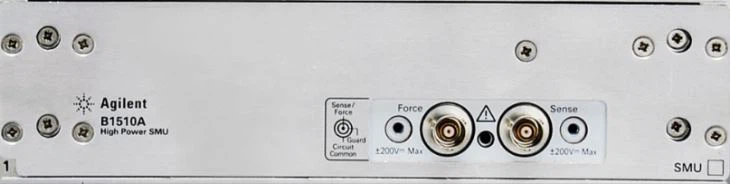

TSEEM CEEB B 1510 A (RIAM PHEEJ)
Qhov Chaw / Kev Ntsuas Cov Khoom Siv (SMUs), xws li Keysight B 1510 A (Agilent), yog qhov ntsuas ntsuas tseem ceeb ntawm Agilent / Keysight B 1500 A Semiconductor Device Parameter Analyzer. Lub SMUs sib xyaw ua ke voltage / tam sim no thiab ntsuas qhov muaj peev xwm mus rau hauv ib qho qauv, thiab nws ua rau muaj tseeb DC qhov tam sim no-voltage (IV) ntsuas nrog qis rau fA / µV daws teeb meem. Qhov ntsuas qis qis tam sim no tuaj yeem nthuav dav mus rau qib sub-fA los ntawm kev xaiv ASU (Atto hnov hloov chav tsev) yog tias koj xav tau ntau qhov ntsuas kev ua haujlwm.
B 1510 A kuj tseem tuaj yeem ua tau Quasi-Static Capacitance-Voltage (QS-CV) ntsuas. Nws yog qhov ntsuas kev ntsuas kom tau txais tsawg tsawg zaus CV cov yam ntxwv, thiab nws yog ib qho tseem ceeb ntawm cov yam ntxwv ntawm lub xeev qhov rooj ntawm transistor zoo li lub siab CV. Keysight B 1500 A ntsuas qhov tseeb QS-CV ntsuas nrog kev xau nyiaj tam sim no.
Nrog rau kev tsom xam thiab cov ntaub ntawv tswj kev muaj peev xwm ntawm EasyEXPERT software, nws muaj zog heev thiab pab tau los ua tus yam ntxwv rau semiconductor, nano cov khoom siv xws li carbon nanotube (CNT) thiab carbon nanowire (CNW), cov nquag ua haujlwm / dhau ntawm cov khoom siv, cov khoom siv thiab cov khoom siv hluav taws xob uas xav tau qhov tseeb thiab ntsuas qhov ntsuas voltage / ntsuas tam sim no.
Nta thiab tshwj xeeb ntawm Keysight B 1510 A (Agilent) suav nrog:
● MPSMU - Ntau txog li 100 V / 100 mA nrog kev ua haujlwm 4-plaub
Measurement Kev ntsuas qhov ntsuas tsawg kawg nkaus 10 fA / 0. 5 μV
Source Yam tsawg kawg nkaus ntawm kev daws teeb meem 50 fA / 25 µV
● Max mem tes dav ntawm 2 s
● Yeem ASU (atto-hnov thiab hloov chav tsev) yog kev txhawb nqa kom nthuav dav ntau yam mus txog 1 pA ntau nrog 0. 1 fA ntsuas kev ntsuas
