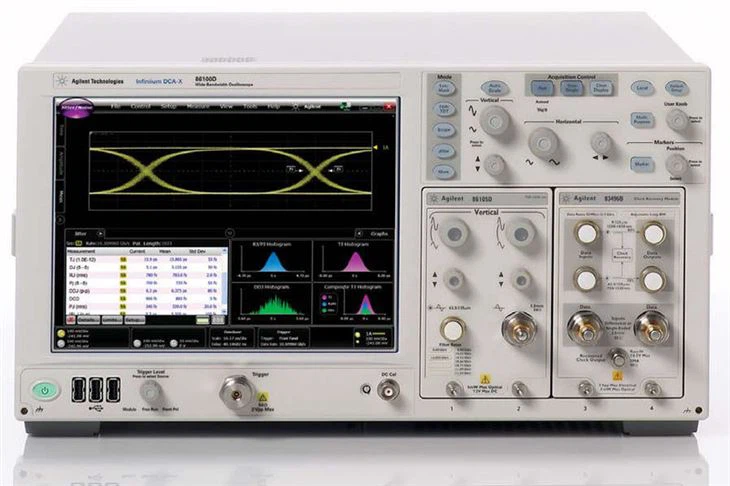

Lub Keysight 86100 D (Agilent) Dav Dav Dav Dav Dav Oscilloscope Mainframe tau tsim los rau qhov tsis raug, kev pom, kev ntsuas lub suab ntsuas, thiab kev siv tau yooj yim. Lub ntsiab lus tseem ceeb muab lub hauv paus rau kev pom muaj zog thiab ntsuas kev muaj peev xwm, xws li de-tso tawm ntawm cov kab hluav taws xob thiab kev sib dhos, uas txhim kho cov npoo thiab cia cov kws ua choj pom qhov ua tau zoo ntawm lawv cov qauv.

Lub Agilent 86100 D Oscilloscope Mainframe ua qhov kev ntsuas ntsuas qhov ncaj ncees ntawm cov qauv nrawm digital ntawm 50 Mb / s mus txog 80 Gb / s. Cov ntawv thov suav nrog:

● Optical - Transceiver Tsim thiab Chaw Tsim Khoom

● Hluav Taws Xob - ASIC / FPGA / IC Tsim thiab qauv

TDR / TDT / S-Parameter - Cov Npauj Npaim Cov Qauv Tsheb, cov kab hluav taws xob, thiab cov cim PCB

Lub Keysight 86100 D (Agilent) Oscilloscope Mainframe tuaj yeem pom li plaub yam khoom muaj zog hauv ib qho:

Hom Kev Hloov: Cov qhov siab ntawm cov qauv waveform hom

● Jitter hom: Precision jitter, ua kom nrawm, thiab ntsuas zaus muaj peev xwm

Qhov Muag / Daim npog ntsej muag: Lub tshuab hluav taws xob nrawm nrawm siv cov duab tsom qhov muag tsom xam thiab qhov siv lub tshuab npog ntsej muag

TDR / TDT hom: Siv sijhawm sij hawm yog qhov ntsuas tsis pom kev / kis thiab S-Parameter ntsuas

Nta thiab Cov Lus Qhia ntawm Keysight 86100 D Oscilloscope Mainframe muaj xws li:

Kev Pom Zoo Tshiab:

● Kev sib xyaw de-embedding / embedding muaj peev xwm (siv 86100 D-SIM InfiniiSim-DCA daim ntawv tso cai)

● Tshaj tawm cov cim ua haujlwm xws li lim, FFT, sib txawv thiab sib xyaw ua haujlwm

Kev ntsuas ntsuas tshiab muaj peev xwm, suav nrog Cov Ntaub Ntawv Tswm Ntswg Ntsej Dav Hlau Tsw Dav Txhaum Tsis Sib Txawv (DDPWS), tsis muaj dab tsi tsis txaus siab (UJ), J 2, J 9 thiab ntau dua

Txhim kho Usability:

Dual neeg siv cuam tshuam:

oFlexDCA - kho tshiab tshiab raws qhov siv neeg siv interface rau cov ntsuas tau, qhov muag thiab jitter ntsuas

oDCA-J “classic” tus neeg siv interface rau 100% rov qab sib raug

User Customizable neeg siv-interface

Tshaj tawm txog 64 kev ntsuas ib txhij

Cov khoom tsim tau zoo:

Ilt Built-in Waveform Simulator nrog random / period jitter thiab lub suab nrov

Live lossis Offline Teeb Tsom Ntsuam (siv N {{0}

Lwm tiam Platform:

● Txhawb nqa mus txog 16 channel (nrog rau yav tom ntej mini-modules) rau kev kuaj qhov kub siab ASIC / FPGA kev kuaj thiab cov qauv txaij

● Ntsia qhov nce thiab txo cov kev tswj hwm uas tuaj yeem raug xa mus rau txhua txoj kev thiab txoj haujlwm
